Outer sealing element module 4

for multi-line building entry systems for district heating basic variant 1

FLFA1x300/80/0 DIN18533 A2

Add to wish list

Outer sealing element module 4 - for multi-line building entry systems for district heating basic variant 1

Outer sealing element for MSH Basic - district heating - BV 1 with fixed/loose flange for buildings with a basement with waterproof sheeting for standing/pressing water load case to DIN 18533, W2.2-E. Suitable for holding bitumen or foil waterproof sheeting.

Outer sealing element module 4 - for multi-line building entry systems for district heating basic variant 1

Facts

Advantages:

can be installed easily and quickly on-site

Scope of delivery:

1 piece of fixed/loose flange for dowelling
6 pieces of wall fastenings SXR 10x80

Dimensions:

Fixed flange OD: 630 mm
Loose flange OD: 620 mm
Thickness of fixed flange: 10 mm
Thickness of loose flange: 10 mm

Properties:

For buildings with a basement to DIN 18195 Part 6
Holds waterproof sheeting (bitumen or foil)

Application range:

Waterproof concrete stress class 1, waterproof concrete stress class 2

Material:

Stainless steel V2A (AISI 304L)

Tightness:

gastight and watertight to 1.5 bar

Downloads

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Variants

Wall sleeve Øi (mm)	Fixed flange OD (mm) D2	Loose flange OD (mm) D3	Wall sleeve wall thickness (mm) S	Article code	Article number	GTIN
300	630	620	2	FLFA1x300/80/0 DIN18533 A2 ¹⁾	2500400007	4052487062381	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:

¹⁾ The loose flange is supplied in split design.

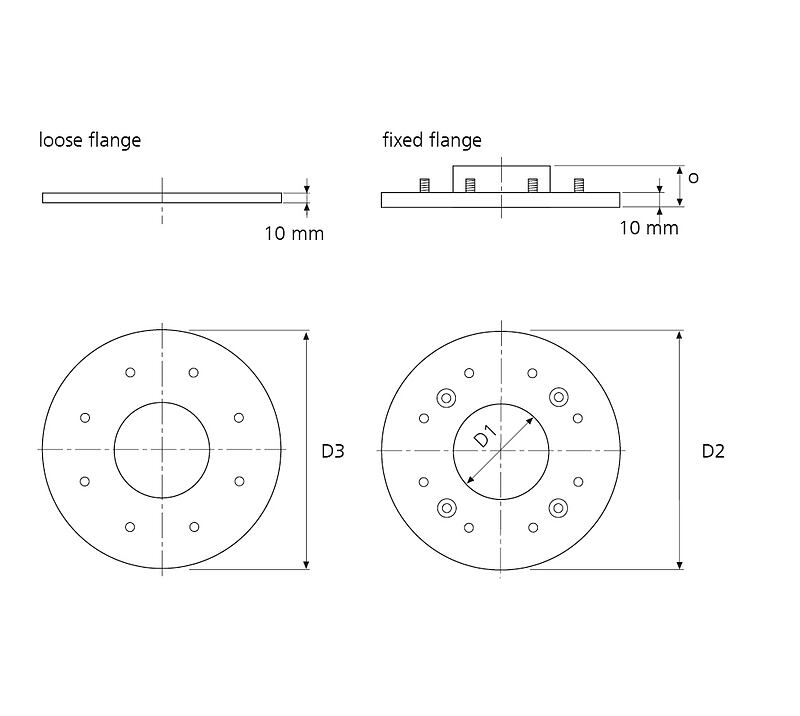

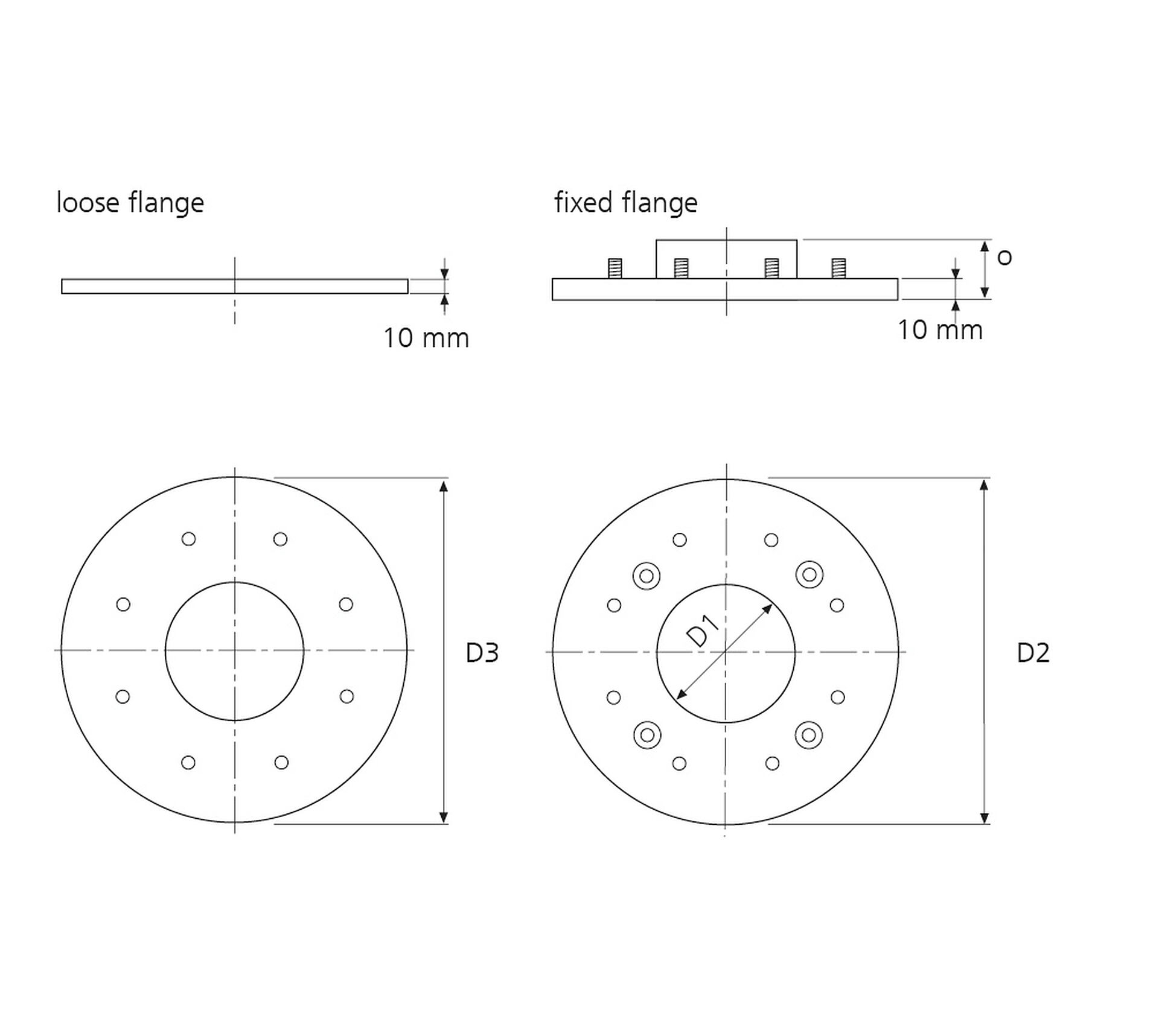

D1: wall sleeve Øi, D2: fixed flange OD, D3: loose flange OD, S: wall sleeve wall thickness
