Cable entries
Cable entries  AccessoriesAccessories

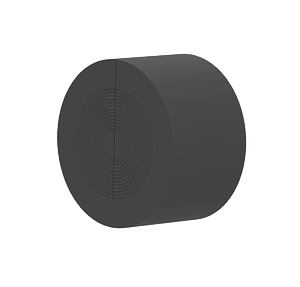

Split interchangeable insert with segment ring technology

for cable seal at the end of the spiral hose

WE100 SG 1x18-65

Add to wish listAdd to wish list
Split interchangeable insert with segment ring technology - for cable seal at the end of the spiral hose
For installation in the KES-M 90-WE sleeve and to seal cables with the rubber press method at the end of the Hateflex spiral hose 14090.
Split interchangeable insert with segment ring technology - for cable seal at the end of the spiral hose

Facts

Advantages:

  • segmented ring technology for adjustment to three or five different pipe diameters on site
  • The interchangeable insert is installed after the cables have been laid
  • The entire cross-section of the empty conduit system is used when cables are laid

Scope of delivery:

  • Blind plugs

Dimensions:

  • OD: 100 mm
  • Sealing width: 60 mm
  • Application range cable diameter: 18 - 65 mm

Application range:

  • Waterproof concrete stress class 1, waterproof concrete stress class 2

Material:

  • EPDM

Tightness:

  • gastight and watertight to 0.5 bar
Downloads

Installation instructions

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Variants

Article code Article number GTIN
WE100 SG 1x18-65 825817112 4052487159166
Download of data sheet and tender specification
